2.4G 1-Zone RGB RGBW RGBCCT RF Remote

This product uses the widely adopted 2.4 GHz frequency and GFSK control method. It has the following features: 10uA MAX low standby power consumption, 30m long-distance transmission, strong anti-interference capabilities, and a fast communication rate. It works with our 2.4 GHz RF LED controllers to turn on or off the LED lights, adjust the brightness and color temperature, and change colors.

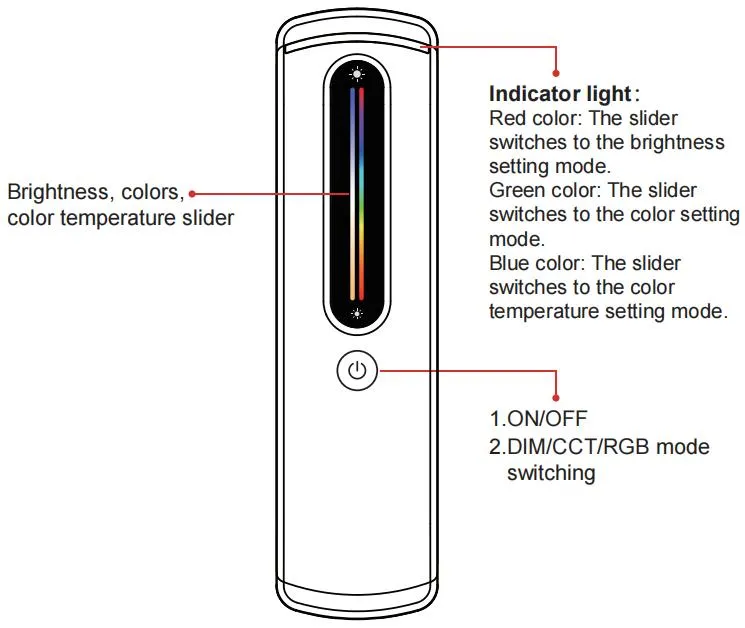

	Short press: Turn on or turn off the light. Long press: Cycle through the slider modes. The indicator light shows different colors of light representing the switch to different modes. Red color: The slider switches to the brightness setting mode. Green color: The slider switches to the color setting mode. Blue color: The slider switches to the color temperature setting mode.
	Touch the slider to adjust the color temperature from warm white to cold white.
	Touch the slider to change the colors.

Function description of the slider:

The remote control slider is in the brightness setting mode by default. Long-pressing the "On/Off" button can cycle through the working modes of the slider. When the slider is in other modes, you can restore it to the brightness setting mode through the following two methods:

1.Quickly and continuously short-press the "On/Off" button twice or more to restore the slider to the brightness setting mode.

2. If there is no operation within 8 seconds, the slider will automatically return to the brightness setting mode.

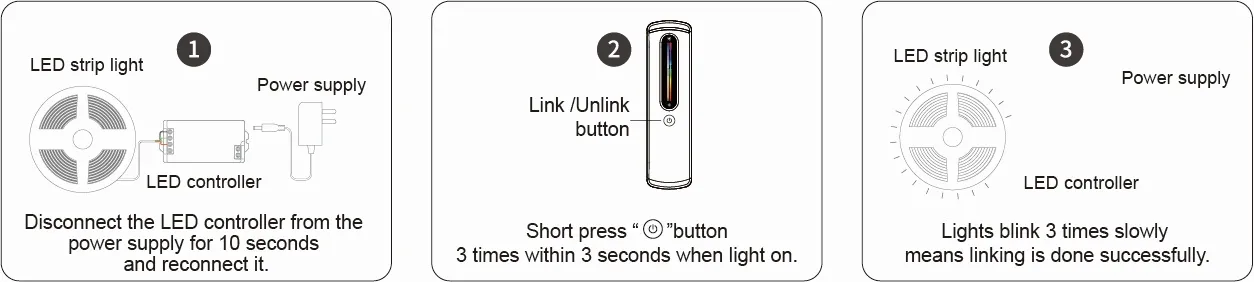

①Disconnect the LED controller from the power supply for 10 seconds and reconnect it.

②Short press Link /Unlink button 3 times within 3 seconds when light on.

③If the lights blink 3 times slowly, this indicates that the linking has been done successfully.

▲Linking failed if light is not blinking slowly, Please follow above steps again.(Note: Light that have linked can't link again).

One remote control can be paired with countless controllers, See the below picture:

Remark:

①The user can re-programme freely as needed. One remote can control countless lamps or controllers, but one lamp or controller can only be controlled by five remotes (Max).

②Please check the battery installation and controller (totally discharge the power),when you programme after switching off and switching on.
