2.4G 1-Zone CCT RF Remote

This RF remote uses the widely used 2.4 GHz frequency band and GFSK modulation method. Once paired, it can be used to remotely control(within 30m control distance) our LED controller and the LED light strips connected to it. You can seamlessly adjust the color temperature from warm white to cool white, as well as adjust the brightness levels and turn the lights on and off. The CCT RF remote control and our LED control(purchased separately)is ideal for use in residential, commercial and hospitality settings, providing a convenient and seamless lighting customization experience.

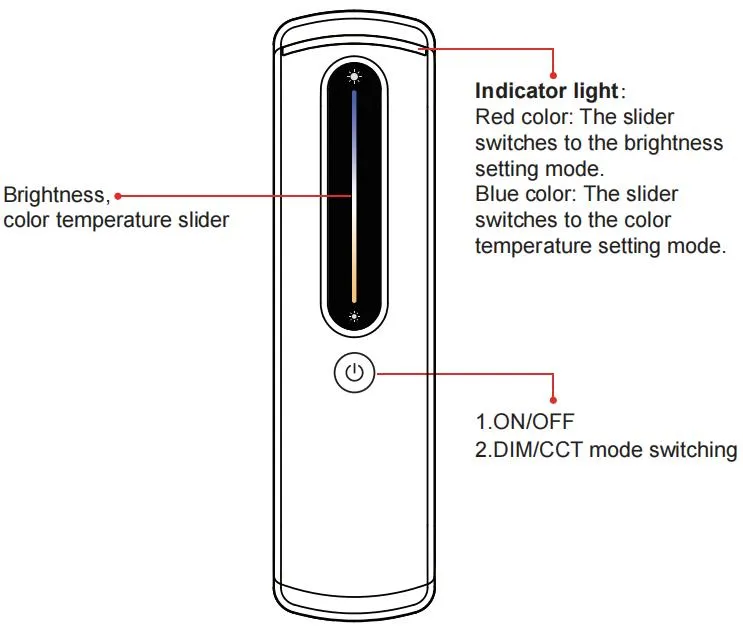

Short press: Turn on or turn off the light.

Long press: Cycle through the slider modes. The indicator light shows different colors of light representing the switch to different modes.

Touch the slider to adjust the color temperature from warm white to cold white.

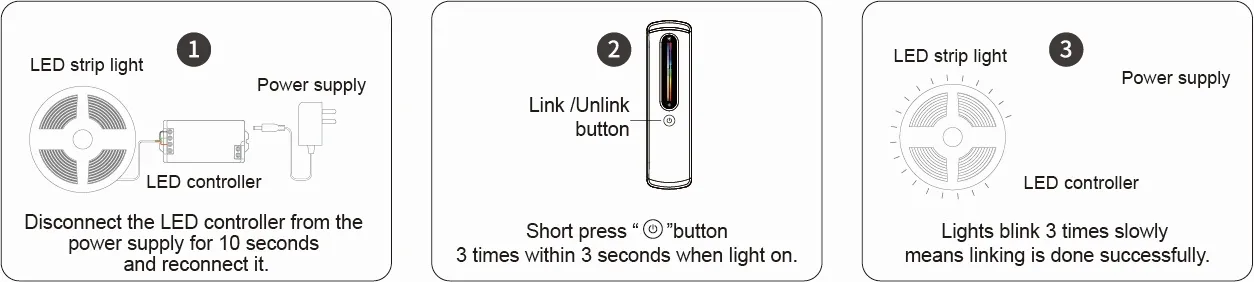

①Disconnect the LED controller from the power supply for 10 seconds and reconnect it.

②Short press Link /Unlink button 3 times within 3 seconds when light on.

③Lights blink 3 times slowly means linking is done successfully.

▲Linking failed if light is not blinking slowly, Please follow above steps again.(Note: Light that have linked can't link again).

One remote control can be paired with countless controllers, See the below picture:

Remark:

①The user can re-programme freely as needed. One remote can control countless lamps or controllers, but one lamp or controller can only be controlled by five remotes (Max).

②Please check the battery installation and controller (totally discharge the power),when you programme after switching off and switching on.

1. This remote only control our 2.4GHz RF products; cannot control other products not made by us.

2. In the using of the remote, if the indicated lamp blinking quickly, Please change the battery in time. Please don't use poor quality battery to avoid the leaking of battery liquid to damage the remote.

3. This 2.4GHz remote is precise electronic product; don't use it in humid, high temperature, dust and high voltage environment; Saving it at indoor, dry and no static electricity environment.

4. Please don't use the remote on the wide-range metal or strong electromagnetic wave area, otherwise, it will badly affect the controlling distance.
