2.4G 1-Zone Single Color RF Remote

▶Brightness dimming function.

▶30m control distance.

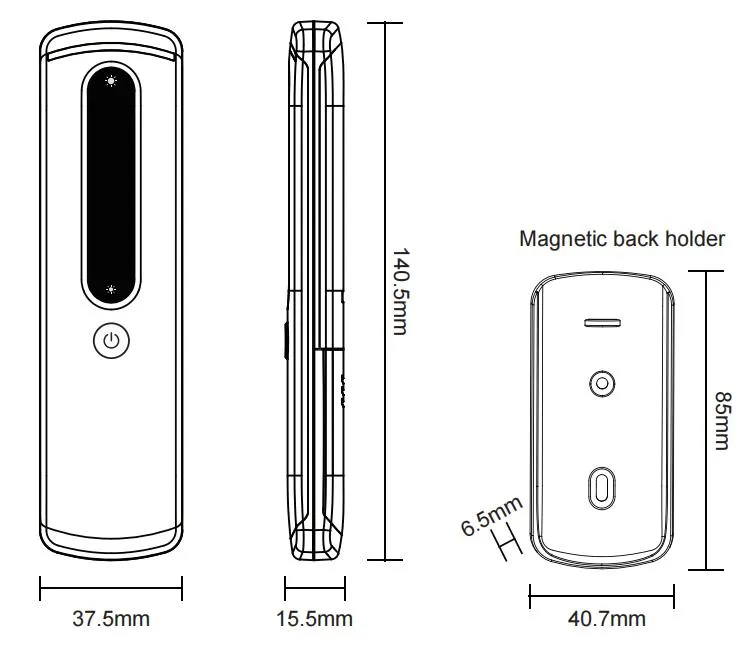

▶Comes with a magnetic back holder. There are three ways to secure the magnetic back holder:

• Method 1: Secure the magnetic back hold er of the remote control to the wall using two screws.
• Method 2: Attach it directly to the metal surface.
• Method 3: Stick the magnetic back holder of the remote control to the wall using the adhesive tape.

Turn on or turn off the light.

Touch the slider to dim the brightness from 1%-100%.

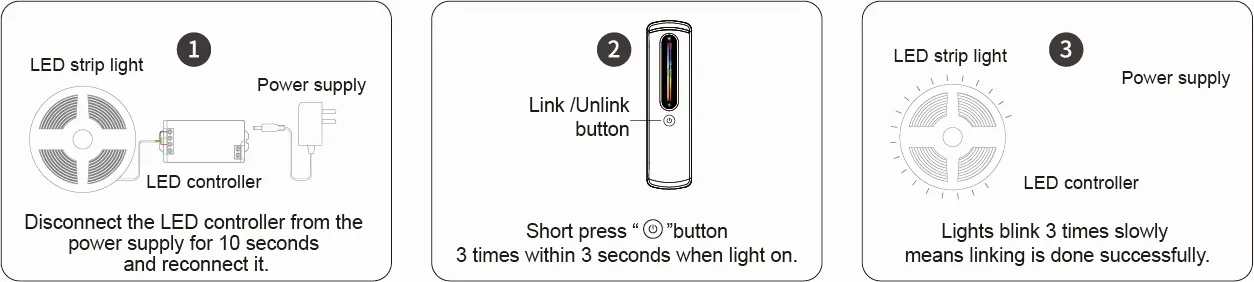

①Disconnect the LED controller from the power supply for 10 seconds and reconnect it.

②Short press Link /Unlink button 3 times within 3 seconds when light on.

③Lights blink 3 times slowly means linking is done successfully.

▲Linking failed if light is not blinking slowly, Please follow above steps again.(Note: Light that have linked can't link again).

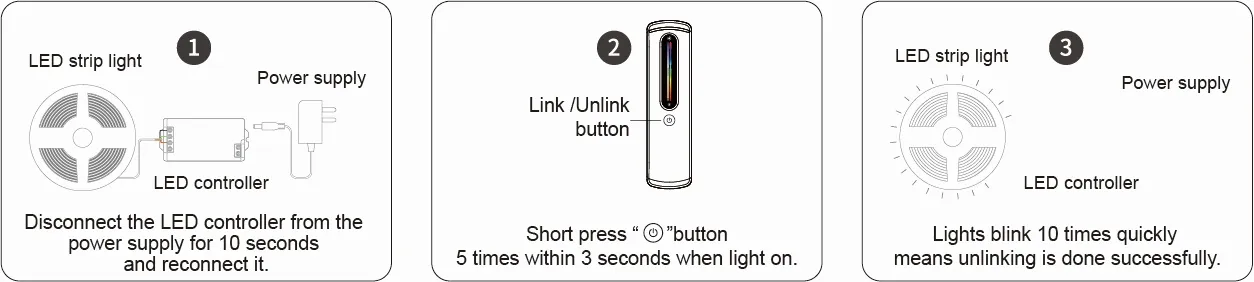

①Disconnect the LED controller from the power supply for 10 seconds and reconnect it.

②Short press Link /Unlink button 5 times within 3 seconds when light on.

③Lights blink 10 times quickly means unlinking is done successfully.

▲Unlinking failed if light is not blinking quickly, Please follow above steps again.(Note: Light haven't linked that don't need to unlink).

One remote control can be paired with countless controllers, See the below picture:

Remark:

①The user can re-programme freely as needed. One remote can control countless lamps or controllers, but one lamp or controller can only be controlled by five remotes (Max).

②Please check the battery installation and controller (totally discharge the power),when you programme after switching off and switching on.
