Description

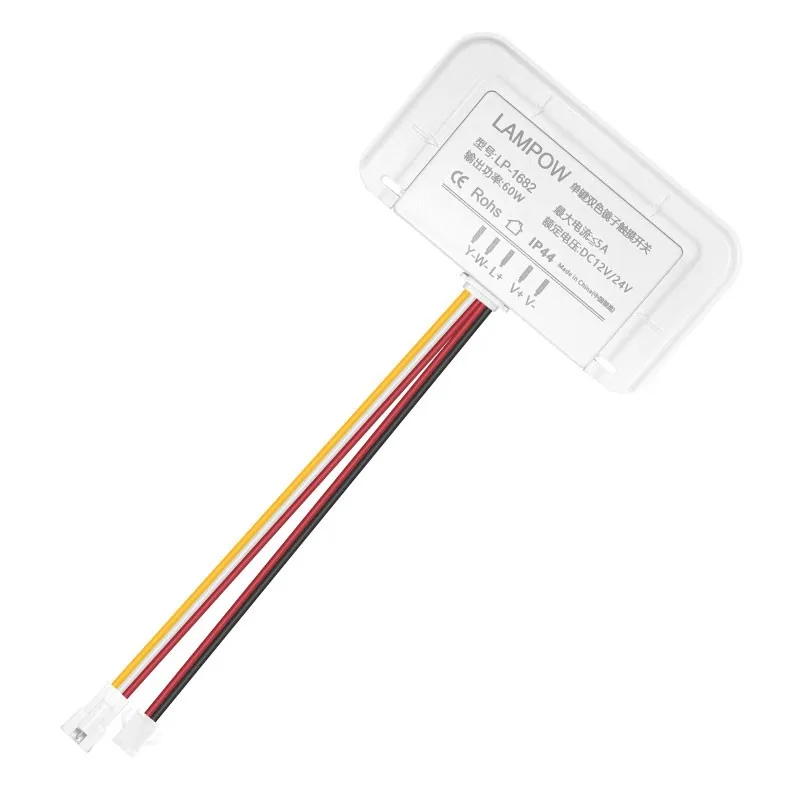

This mirror touch sensor switch, which has a brightness and color temperature adjustment function, is part of our Qiumu series of mirror sensor switches. At just 6 mm thick, it is perfect for mounting behind the mirror(up to 5mm mirror thick). A light tap on the mirror surface activates your LED vanity lights, bathroom mirror or mirror cabinet illumination. Long-press for stepless dimming. This switch also allows you to adjust the color temperature, making it ideal for use with dual-color temperature LED strips, so you can switch to the most suitable lighting at any time to suit your needs.
Parameters
|
Product name |
Single key dual color temperature mirror touch switch |
|
Control mode |
Separate control |
|
Input/Output voltage |
DC 12-24V |
|
Cable length |
1.5m |
|
Load LED power |
12V≤60W/24V≤60W |
|
Switch size |
68mm*41mm*6mm |
|
Base size |
96mm*51mm |
|
Sensing distance |
5mm |
|
Function |
Turn on/off the lamps; switch color temperature; dimming |
|
Backlight color |
Blue/white |
|
IP rating |
IP44 |
|
Certification |
CE, RoHS |
|
Warranty |
3 Years |
|
Brand name |
Lampow |
|
Model |
LP-1682 |

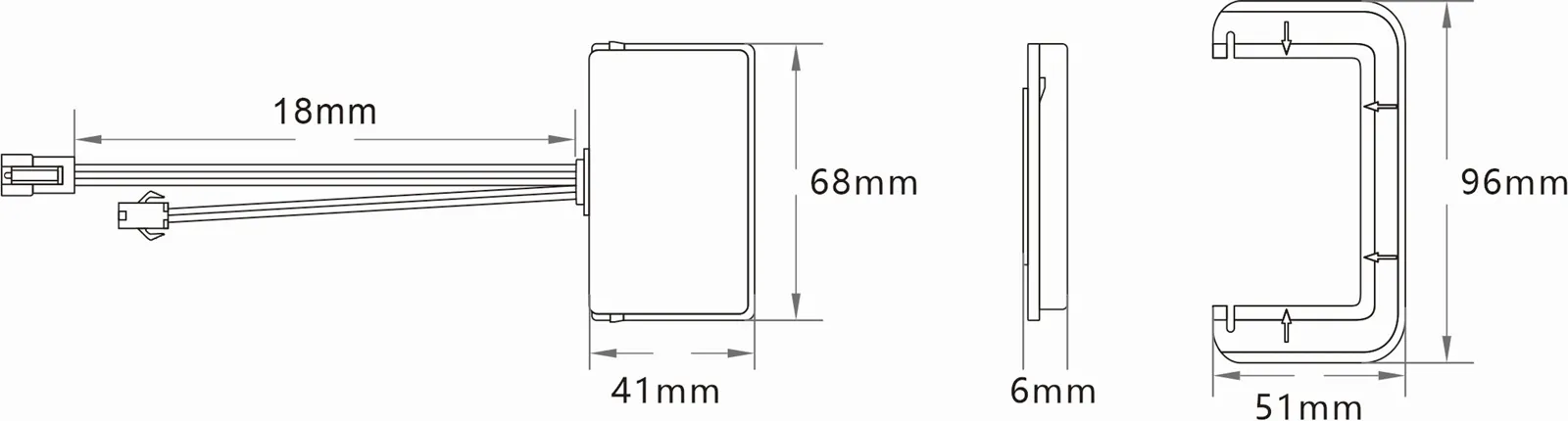

Size

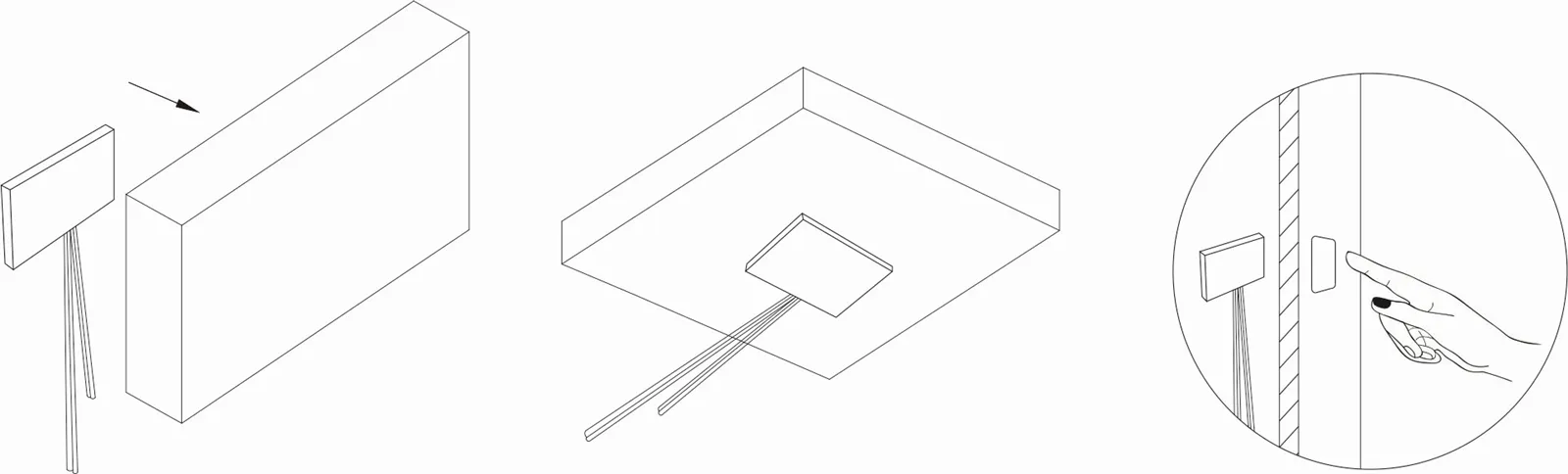

Installation
Remove the adhesive tape from the bracket and stick it to the back of the mirror. Align the switch with the bracket, then push it forward to secure it in place. Then, connect the lights and the 12V/24V DC power supply. Finally, switch on the power.
Tips:
Make sure that the installation position is clean before installation. Otherwise, it will affect the adhesive strength of the tape.
