Description

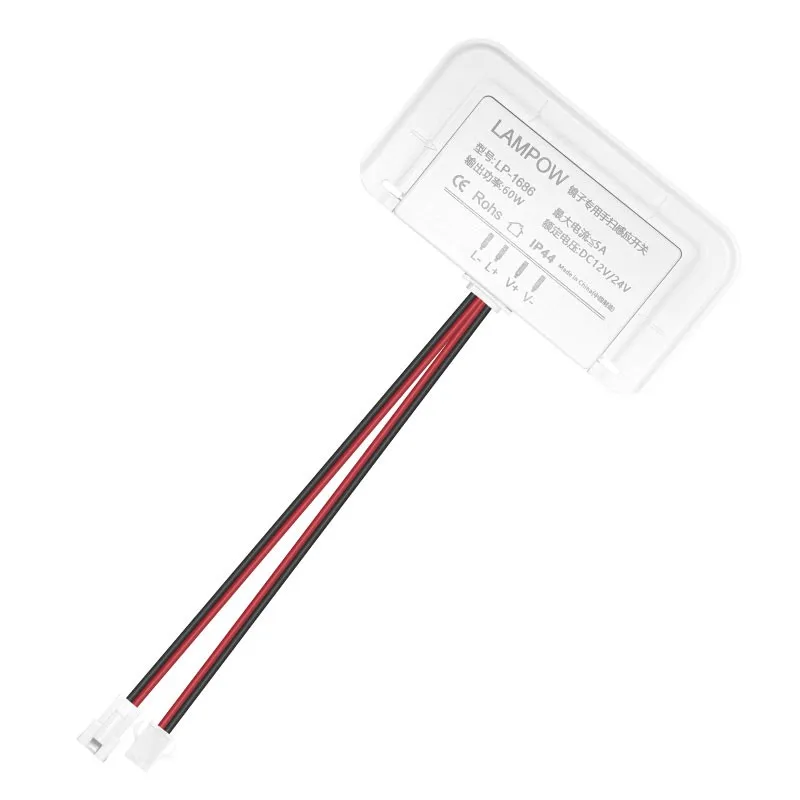

This hand wave sensor switch for mirror is part of our Qiumu series mirror sensor switches. Install it behind the mirror(up to 5mm mirror thick), with no physical contact needed, and wave your hand in front of the mirror to turn the lights on and off. Its anti-glare design gradually brightens or dims the light, making it gentler on the eyes. With touchless gesture control, it is perfect for wet hands, makeup-covered fingers or anyone who avoids touching mirror surfaces. It also has an IP44 protection rating, making it suitable for mirrors in both bedrooms and bathrooms.
Parameters
|
Product name |
Hand wave sensor switch for mirror |
|
Control mode |
Separate control |
|
Input/Output voltage |
DC 12-24V |
|
Cable length |
1.5m |
|
Load LED power |
12V≤60W/24V≤60W |
|
Switch size |
68mm*41mm*6mm |
|
Base size |
96mm*51mm |
|
Sensing distance |
0-8cm |
|
Function |
Wave your hand to control the light to turn on/off |
|
Backlight color |
Blue/white |
|
IP rating |
IP44 |
|
Certification |
CE, RoHS |
|
Warranty |
3 Years |
|
Brand name |
Lampow |
|
Model |
LP-1686 |

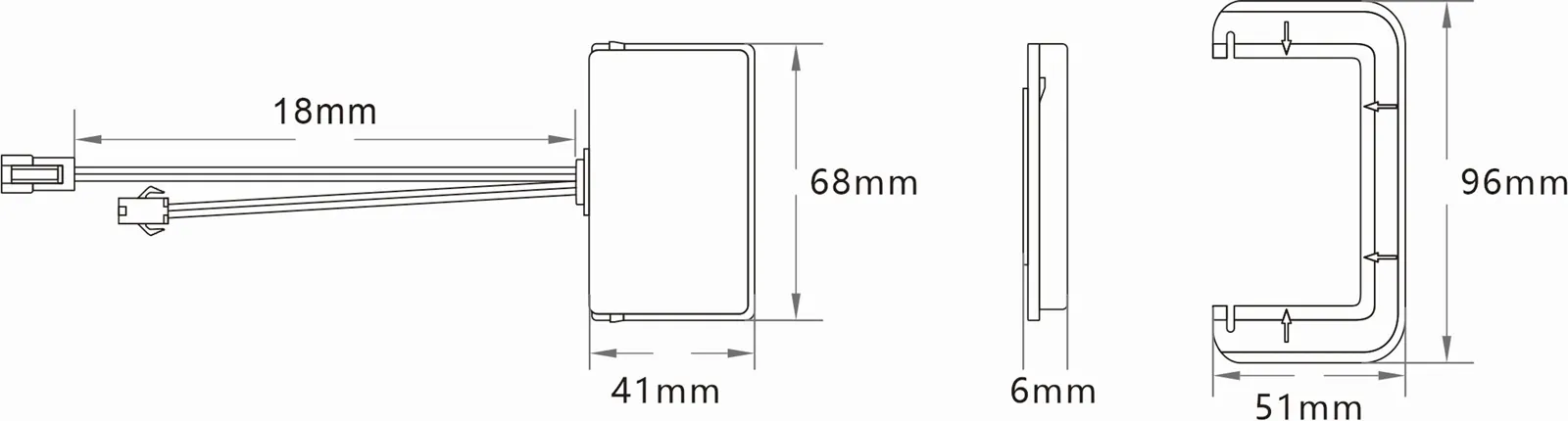

Size

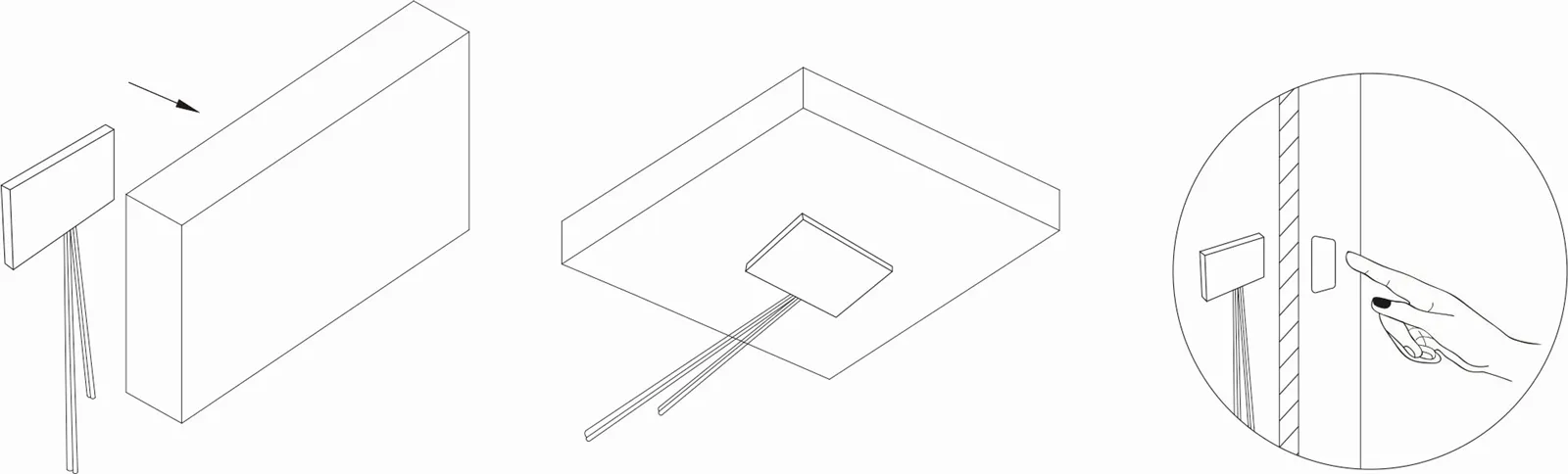

Installation
Remove the adhesive tape from the bracket and stick it to the back of the mirror. Align the switch with the bracket, then push it forward to secure it in place. Then, connect the lights and the 12V/24V DC power supply. Finally, switch on the power.
Installation tips:
Please ensure the installation place is clean. If the tape does not adhere properly, it may affect the switch's performance.
