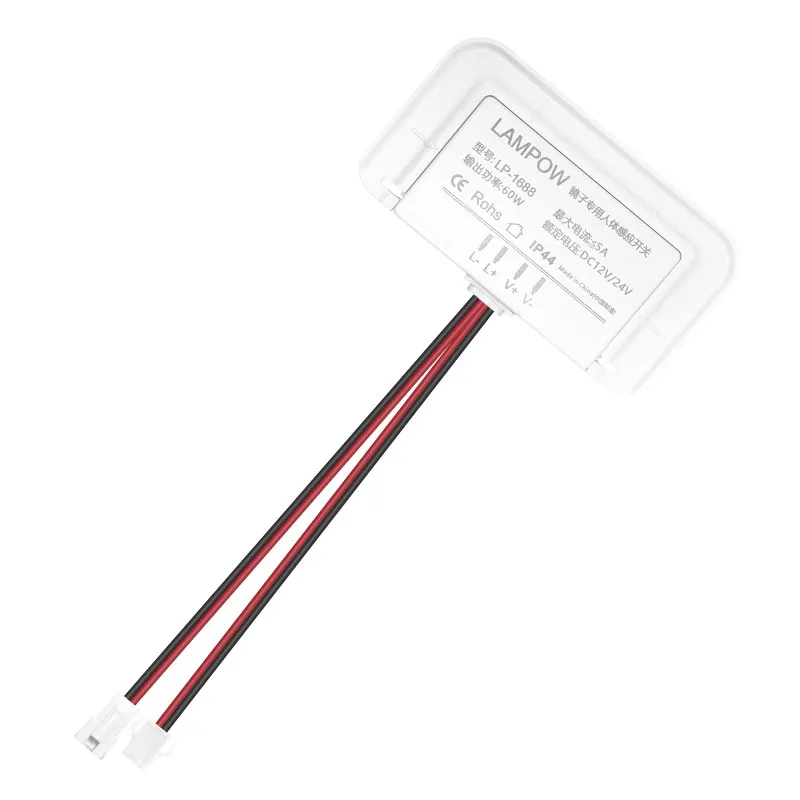

PIR Motion Sensor Switch for Mirror

PIR Motion Sensor Switch for Mirror

Details
This PIR motion sensor switch for mirror is part of our Qiumu series mirror sensor switches. It detects body heat and movement within its detection range-lights turn on automatically when someone approaches, and off 35s after they walk away. Unlike touch switches (need precise tap) or hand‑wave sensors (need active gesture), PIR works completely automatically. It is not only truly hands-free, but also energy-efficient and environmentally friendly. You needn’t worry if you leave and forget to switch off the lights. Ideal for mirrors in bathrooms, hotel rooms, walk‑in closets, and makeup mirrors.
Category
Mirror Sensor Switch
Share to
Send Inquiry
Description
Technical Parameters

Description



This PIR motion sensor switch for mirror is part of our Qiumu series mirror sensor switches. It detects body heat and movement within its detection range-lights turn on automatically when someone approaches, and off 35s after they walk away. Unlike touch switches (need precise tap) or hand‑wave sensors (need active gesture), PIR works completely automatically. It is not only truly hands-free, but also energy-efficient and environmentally friendly. You needn't worry if you leave and forget to switch off the lights. Ideal for mirrors in bathrooms, hotel rooms, walk‑in closets, and makeup mirrors.



Parameters



Product name

PIR motion sensor switch for mirror

Control mode

Separate control

Input/Output voltage

DC 12-24V

Cable length

1.5m

Load LED power

12V≤60W/24V≤60W

Switch size

68mm*41mm*6mm

Base size

96mm*51mm

Sensing distance

0-3m

Delay time

35s

Detecting angle

120°

Function

Control the lights come on when people come and go out when people leave

Backlight color

Blue/white

IP rating

IP44

Certification

CE, RoHS

Warranty

3 Years

Brand name

Lampow

Model

LP-1688



Size



3



Installation

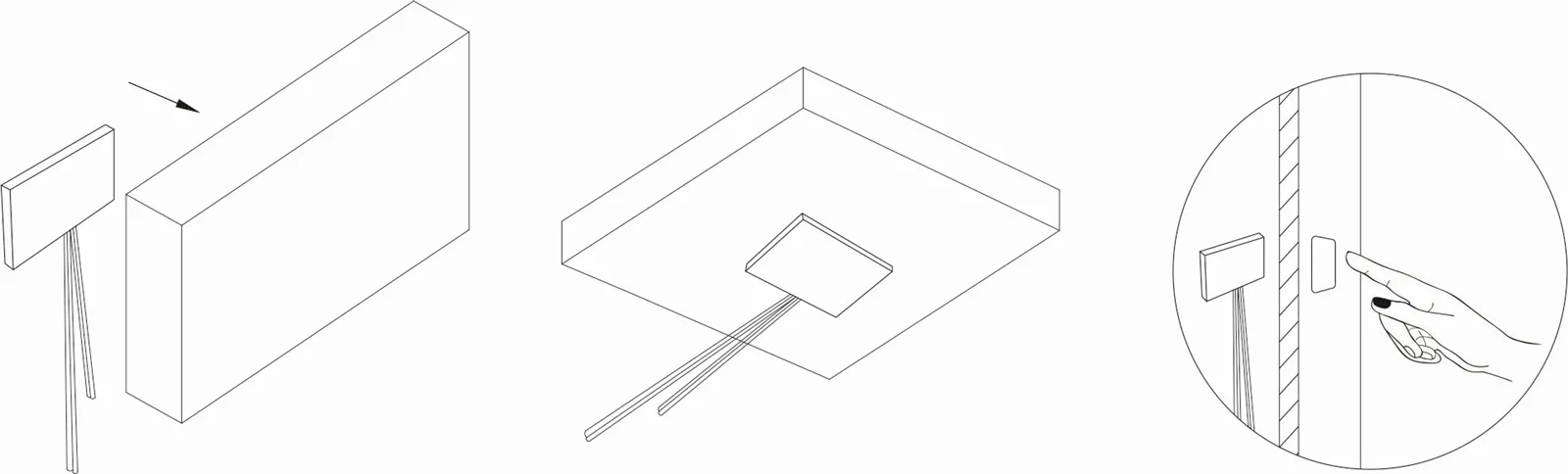

Remove the adhesive tape from the bracket and stick it to the back of the mirror. Align the switch with the bracket, then push it forward to secure it in place. Then, connect the lights and the 12V/24V DC power supply. Finally, switch on the power.



4



FAQ



Q1: Are you a trading company or a manufacturer?

A1: We are a manufacturer established in 2015. Our new factory is located in Houjie Town, Dongguan City, Guangdong Province.

Q2: What products can you buy from us?

A2: Wired sensor switches, wireless sensor switches, LED drivers, etc.

Q3: Can you send me a product catalog or price list?

A: We would be happy to share our latest product catalog. However, since prices vary by customization, please let us know your specific requirements so we can provide an accurate quote.
