Description

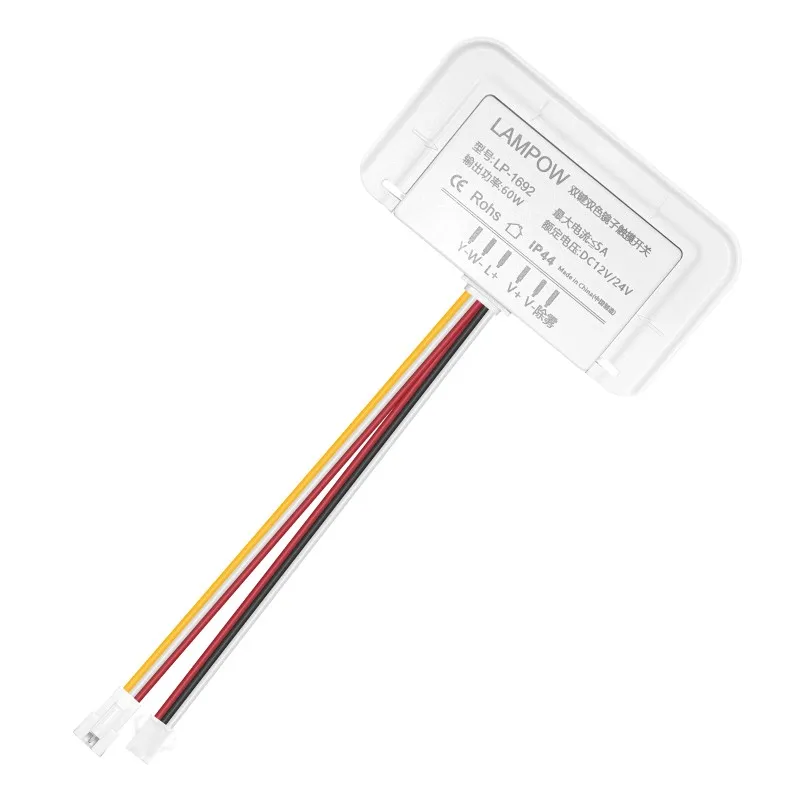

This dual-key touch sensor switch for mirror with anti-fog function is part of our Qiumu series mirror sensor switches. It installs behind the mirror(up to 5mm mirror thick) and provides two independent touch zones on the mirror surface: Key 1 (Light)-On/Off, smooth dimming, and color temperature adjustment. Key 2 (Defogger)-Defog on/off(this must be used with a anti-fog heating pad). This switch is ideal for use with dual-color temperature LED strips and is widely used for lighting control in various mirror cabinets.
Parameters
|
Product name |
Anti-fog function mirror touch sensor switch |
|
Control mode |
Separate control |
|
Input/Output voltage |
DC 12-24V |
|
Cable length |
1.5m |
|
Load LED power |
12V≤60W/24V≤60W |
|
Switch size |
68mm*41mm*6mm |
|
Base size |
96mm*51mm |
|
Sensing distance |
5mm |
|
Function |
key 1 turn on/off the lamps; switch color temperature; dimming key 2 defog on / off |
|
Backlight color |
Blue/white |
|
IP rating |
IP44 |
|
Certification |
CE, RoHS |
|
Warranty |
3 Years |
|
Brand name |
Lampow |
|
Model |
LP-1692 |

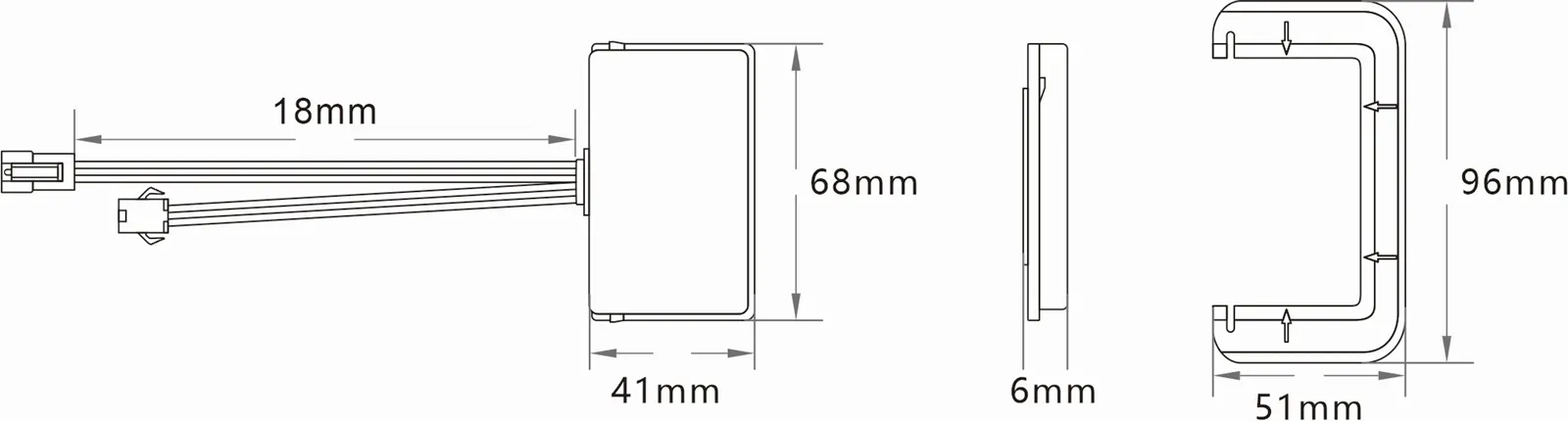

Size

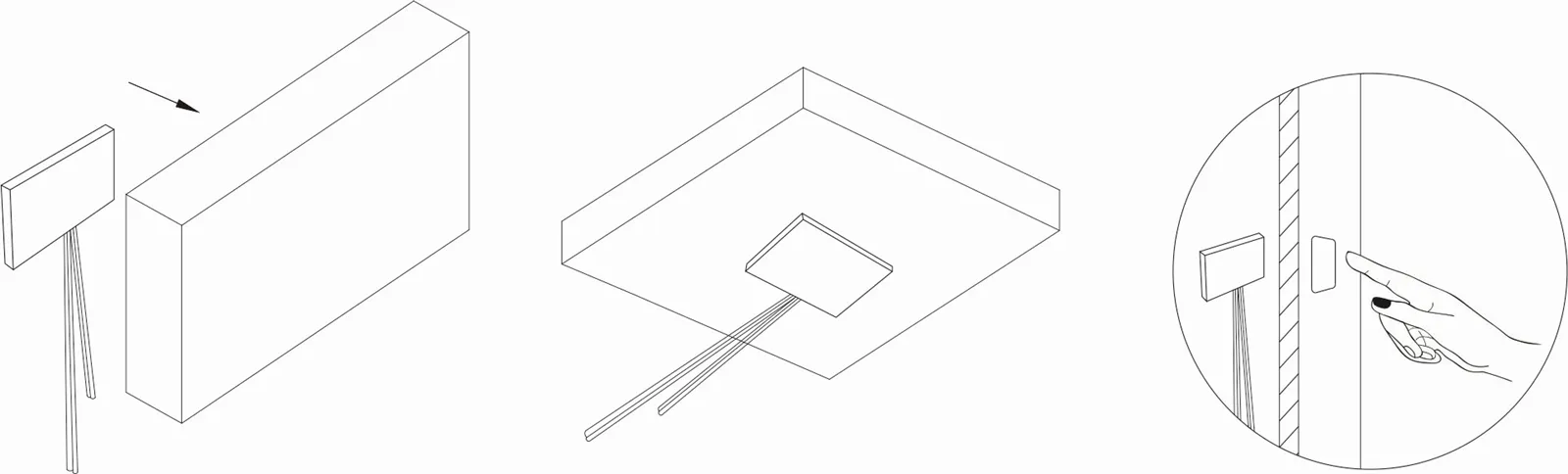

Installation
Remove the adhesive tape from the bracket and stick it to the back of the mirror. Align the switch with the bracket, then push it forward to secure it in place. Then, connect the lights and the 12V/24V DC power supply. Finally, switch on the power.
Tips:
For electrical maintenance and installation work, it is essential to ensure that operators hold the relevant electrical qualifications and that the necessary power-off and insulation safety measures are taken.
