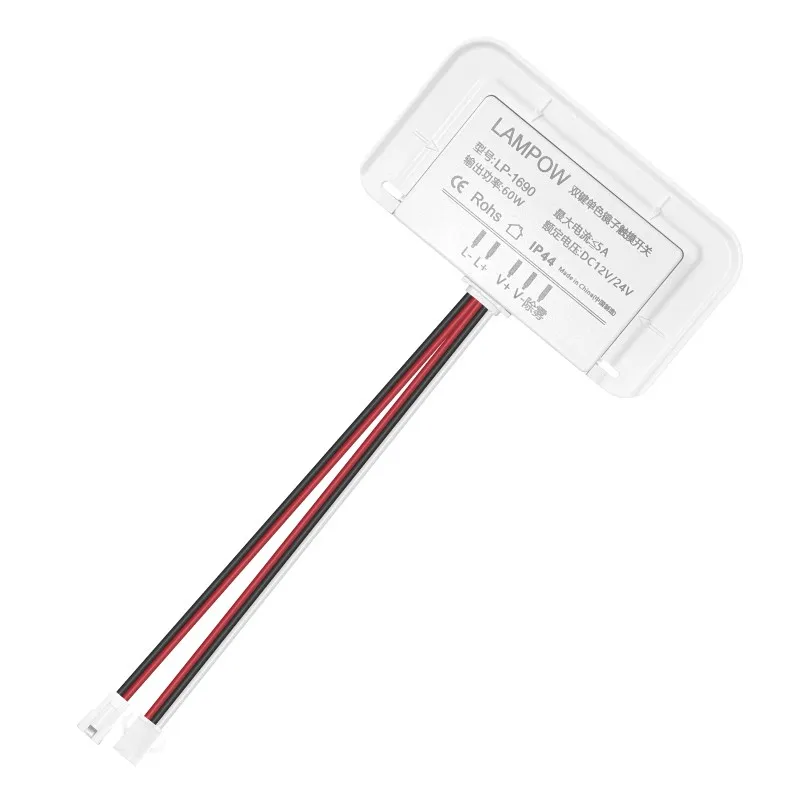

Touch Sensor Switch for Mirror

This mirror touch sensor switch is part of our Qiumu series mirror sensor switches. This smart mirror switch has defogging function and is installed invisibly behind the mirror. This switch has two buttons that perform different functions. Press Key 1 once to turn the LED lights on/off or hold it down for dimming. Key 2: Defogging function on/off(this must be used with a bathroom mirror heating pad). This function keeps the mirror fog-free after hot showers. With its IP44 protection rating, it is ideal for lighting control in the bathroom.

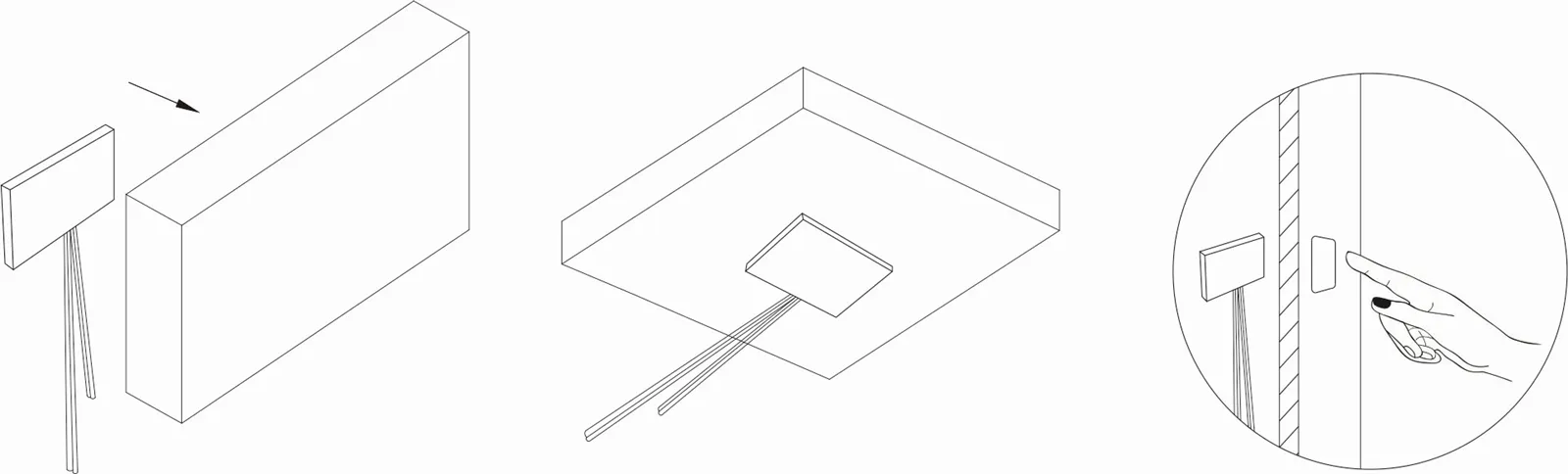

Remove the adhesive tape from the bracket and stick it to the back of the mirror. Align the switch with the bracket, then push it forward to secure it in place. Then, connect the lights and the 12V/24V DC power supply. Finally, switch on the power. Do not install or wire while the power is on.

Tips:

Before installing the touch switch bracket, make sure that the installation surface is clean and free from grease, dust, or anything else that could affect the bonding strength of the adhesive tape. If the bracket is loose, it may affect touch sensitivity.
