Description

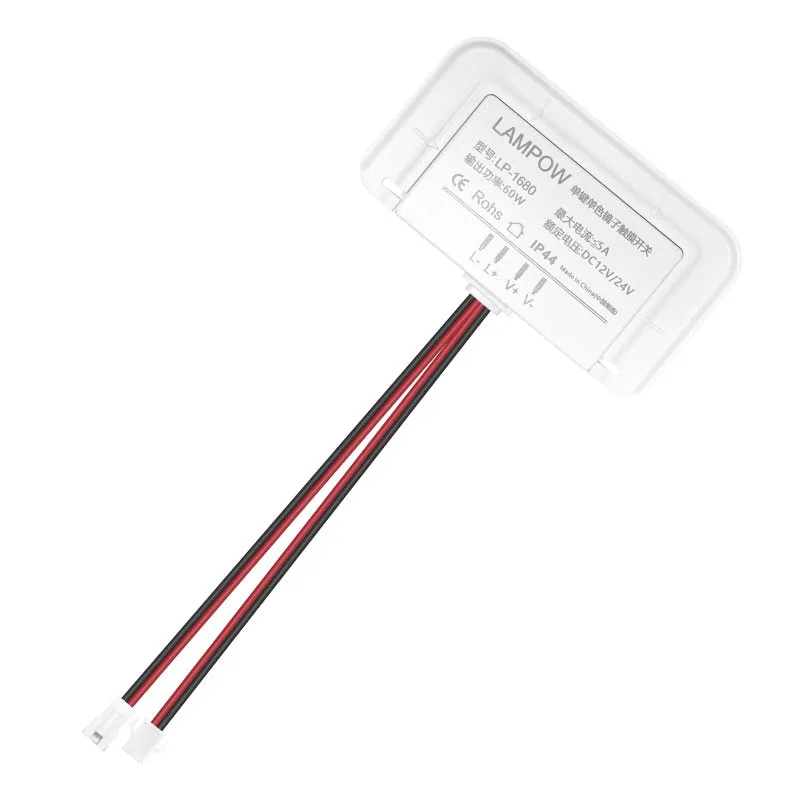

This mirror touch sensor switch with dimming function is part of our Qiumu series mirror sensor switches. Upgrade your mirror with our capacitive touch sensor switch. Stick it behind any mirror(up to 5mm mirror thick), and turn lights on/off with a simple touch on the mirror surface. Press and hold the switch to activate stepless dimming. It has a memory function for the last brightness setting. When you turn the light on again, it will automatically be the same brightness as it was last time. This product has an IP44 waterproof rating and is also ideal for mounting on bathroom mirrors.
Parameters
|
Product name |
Single key single color temperature mirror touch switch |
|
Control mode |
Separate control |
|
Input/Output voltage |
DC 12-24V |
|
Cable length |
1.5m |
|
Load LED power |
12V≤60W/24V≤60W |
|
Switch size |
68mm*41mm*6mm |
|
Base size |
96mm*51mm |
|
Sensing distance |
5mm |
|
Function |
Press once to turn on/off the lamps; long press for dimming |
|
Backlight color |
Blue/white |
|
IP rating |
IP44 |
|
Certification |
CE, RoHS |
|
Warranty |
3 Years |
|
Brand name |
Lampow |
|
Model |
LP-1680 |

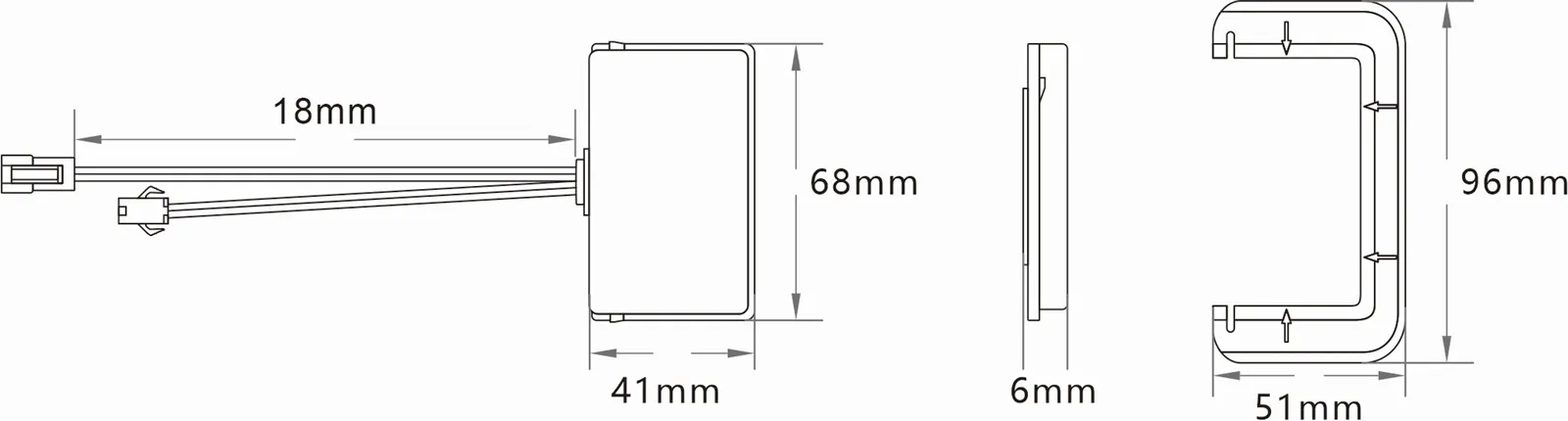

Size

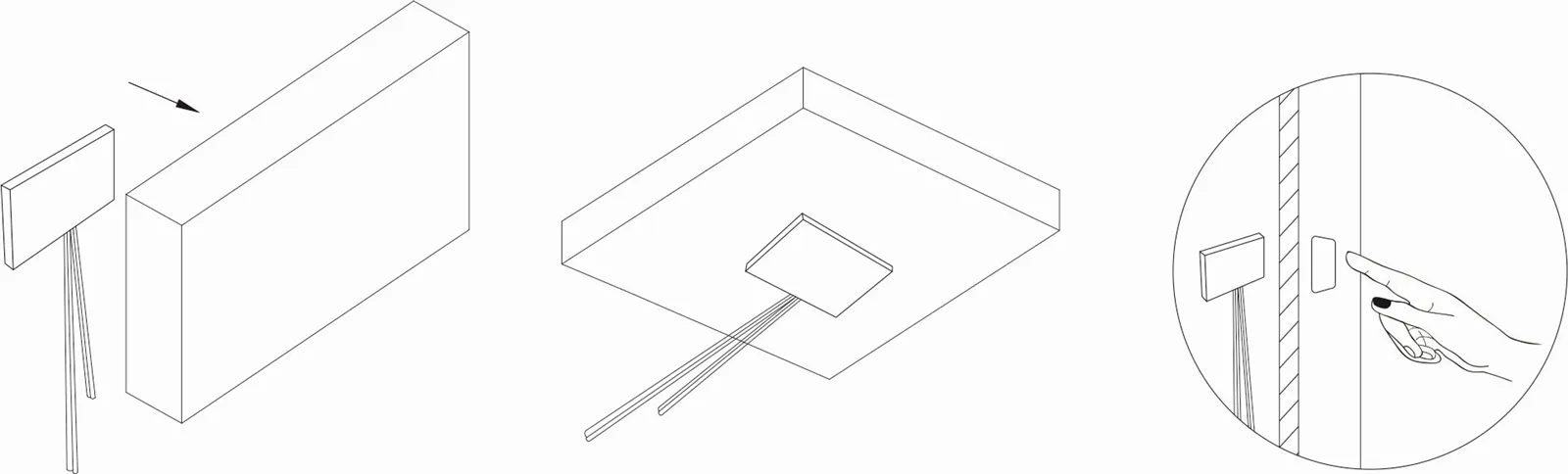

Installation
Steps:
①Engraved touch logo on the mirror.
②Tear off the tape on the bracket.
③Align the arrow symbols marked on the bracket with the center of the logo, then secure the bracket to the the mirror.
④Align the switch with the bracket and push forward to fix it.
⑤Wiring.
⑥Power on.
