Description

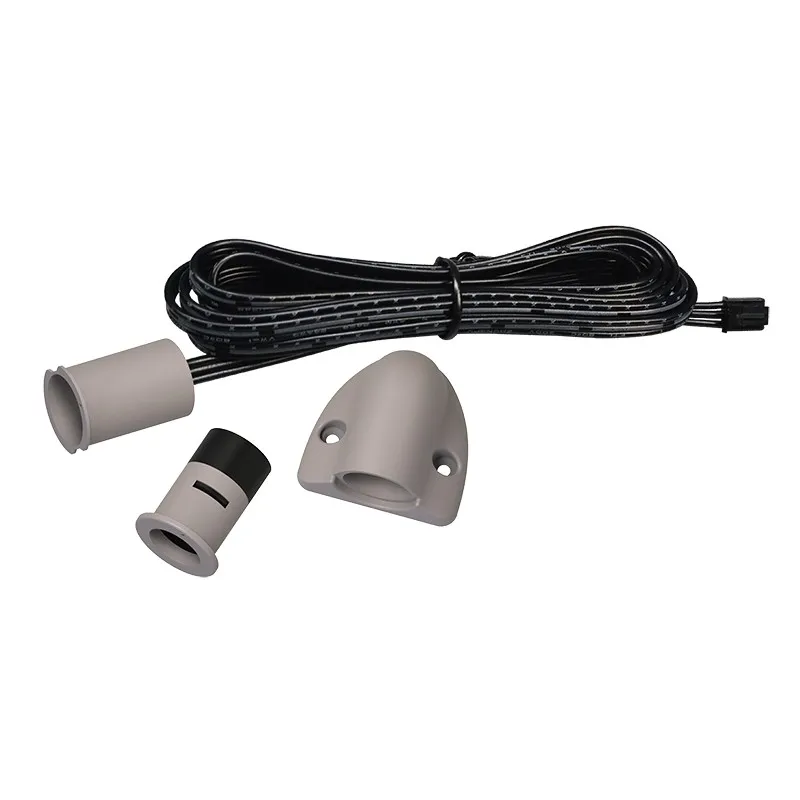

▶About this item - This IR single door sensor switch is designed for use with DC 12/24V in-cabinet/closet LED lights. When you open the door, this door sensor switch will turn on the LED lights automatically. When you close the door, this door sensor switch will turn off the LED lights.
▶High quality - It uses ICs that provide consistent quality and strong resistance to interference and can sense black material normally.
▶Easy to install - Suitable for both surface mounting and recessed installation. A base for surface mounting is available. If you prefer a recessed installation, the mounting hole is just 12 mm in diameter.
▶Detachable design - Its detachable design makes it very easy to install or replace.
▶Wide application - This infrared sensor switch is compatible with both 12V and 24V DC, which are the common input voltages for cabinet LED lights.
Parameters
|
Control mode |
Centralized control |
|
Input/Output voltage |
DC 12-24V |
|
Power cable |
2m |
|
Load LED power |
Depending on the transformer load |
|
Drilling size for embedded mounting |
12mm |
|
Bracket size for surface mounting |
28.3mm*28.7mm*16mm |
|
Sensing distance |
0-8cm |
|
Function |
Control the light on/off by opening and closing door |
|
Certification |
CE, RoHS |
|
Warranty |
3 Years |
|
Brand name |
Lampow |
|
Model |
LP-5038M-BJ |
Size

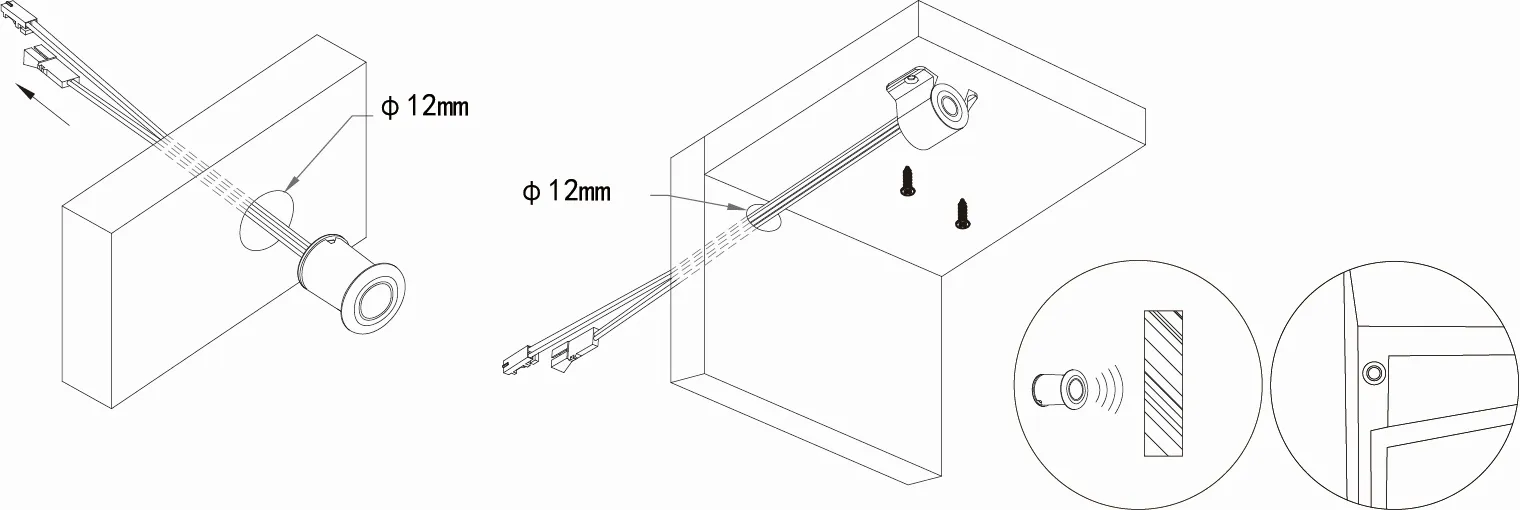

Installation

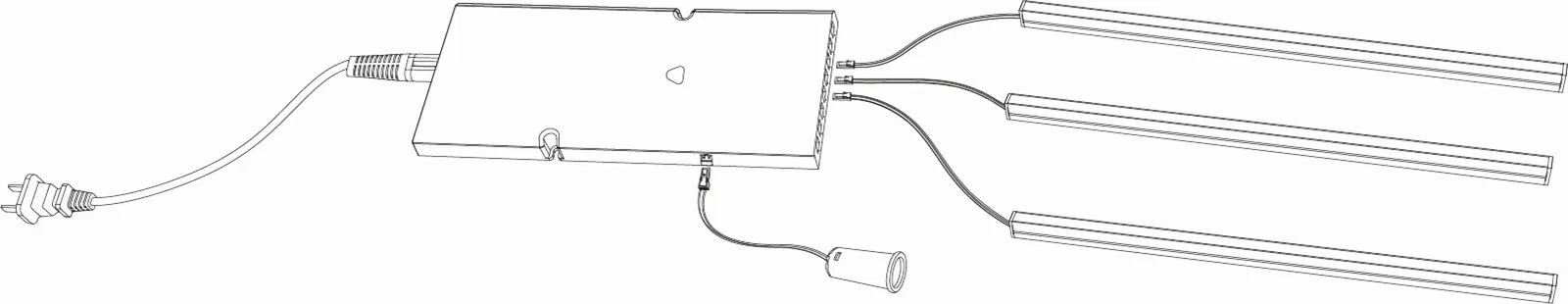

Wiring diagram
