Description

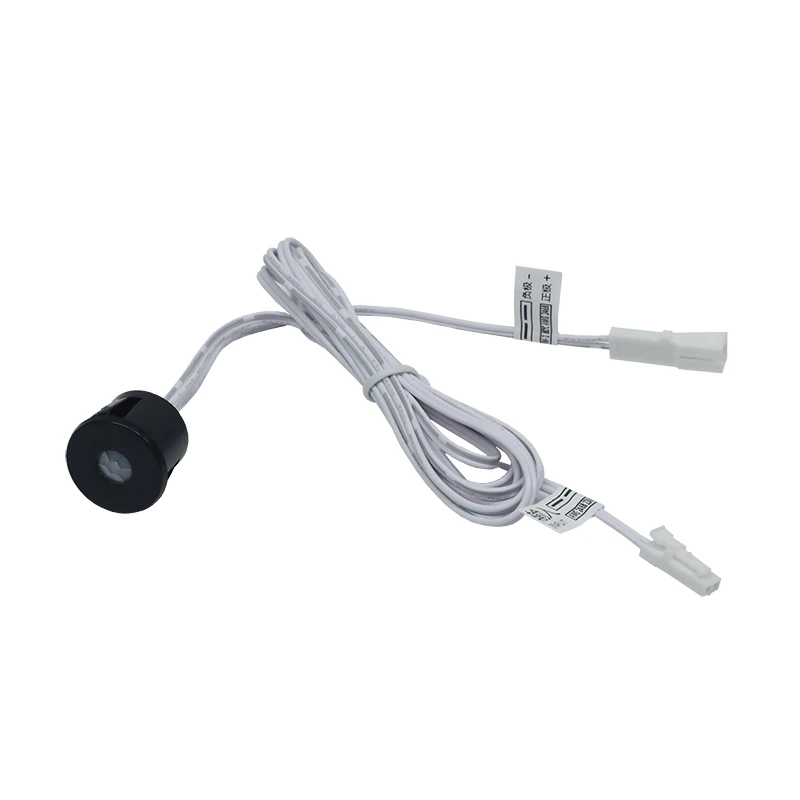

▶This is a recessed-only 12V Passive Infrared Sensor Switch, specially designed to control low-voltage LED strips.
▶It turns the light on once human movement is detected, and keeps the light on for 30 seconds after people leave the sensing area before switching off. The sensing distance reaches 0–3 meters with a 90° detection angle.
▶Boasting high sensitivity and little impact from ambient temperature, this reliable sensor is widely used for lighting control of kitchen cabinets, wardrobes, wine cabinets and other cabinets. It comes with a 1.5m power cable, CE and RoHS certification, and a 3-year warranty.
Parameters
|
Control mode |
Separate control |
|
Input/Output voltage |
DC 12V |
|
Power cable |
1.5m |
|
Load LED power |
12V≤24W |
|
Sensor size |
16mm*φ21.8mm |
|
Drilling size for embedded mounting |
18.5mm |
|
Sensing distance |
0-3m |
|
Delay time |
30s |
|
Detecting angle |
90° |
|
Function |
It controls the lights: the lights turn on when motion is detected, and turn off 30 seconds after motion stops |
|
Certification |
CE, RoHS |
|
Warranty |
3 Years |
|
Brand name |
Lampow |
|
Model |
LP-2016A |
|
Place of origin |
Guangdong, China |
Size
Installation
Requires a φ18.5mm cutout for recessed mounting
Wiring diagram
Working voltage 12V/max load 24W/max output current 2A
The input is connected to the LED driver, while the output is connected to the LED lights.
