Description
▶About this item - This product operates on an AC voltage of 85-265V and is suitable for connecting high-voltage lamps and light strips. It can also be connected to low-voltage LED strip lights, but must be used with a transformer.
▶Function of the sensor - Touch to turn the LED lights on or off immediately.
▶High quality - It is manufactured using high-quality electronic components to ensure consistent performance, high sensitivity and a long service life. We also offer a three-year warranty.
▶Safety protection - The high-voltage controller adopts isolation solution with built-in isolation transformer to ensure physical isolation between the strong power of the high-voltage controller and the sensor switch for your safety.
▶Wide application - Widely used for lighting control in cabinets, wardrobes, wine cabinets and other cabinets.
Parameters
|
Switching method |
Power on when someone touches the sensor |
|
Operating voltage |
AC85V-265V |
|
Power cable |
1.5m |
|
Load capacity |
5A |
|
High-voltage transformer dimensions |
80mm*55mm*24mm |
|
Sensor dimensions |
12mm*15.5mm |
|
Function |
tap to turn the light on/off |
|
Certification |
CE, RoHS |
|
Warranty |
3 Years |
|
Brand name |
Lampow |
|
Model |
LP-5818TH |

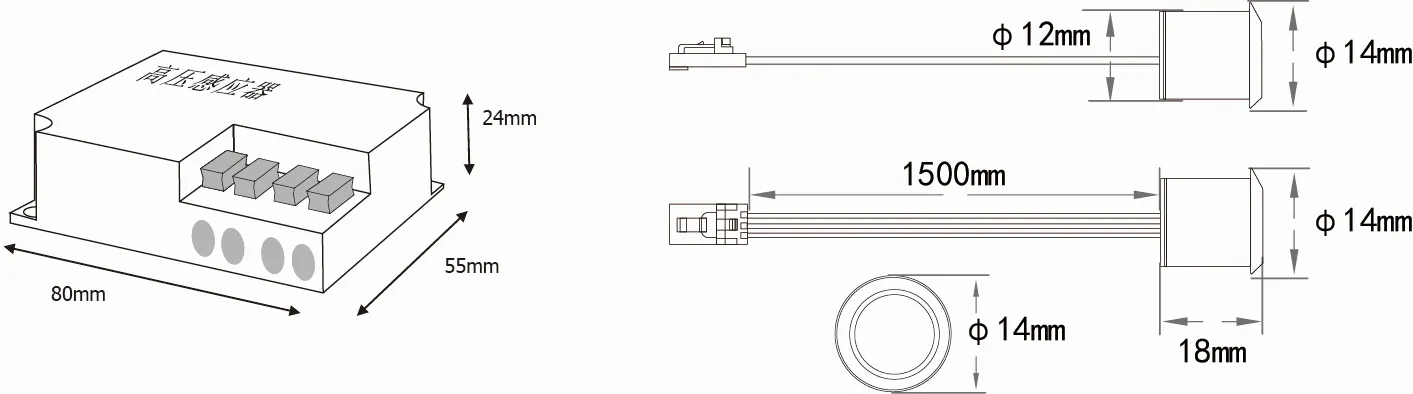

Size

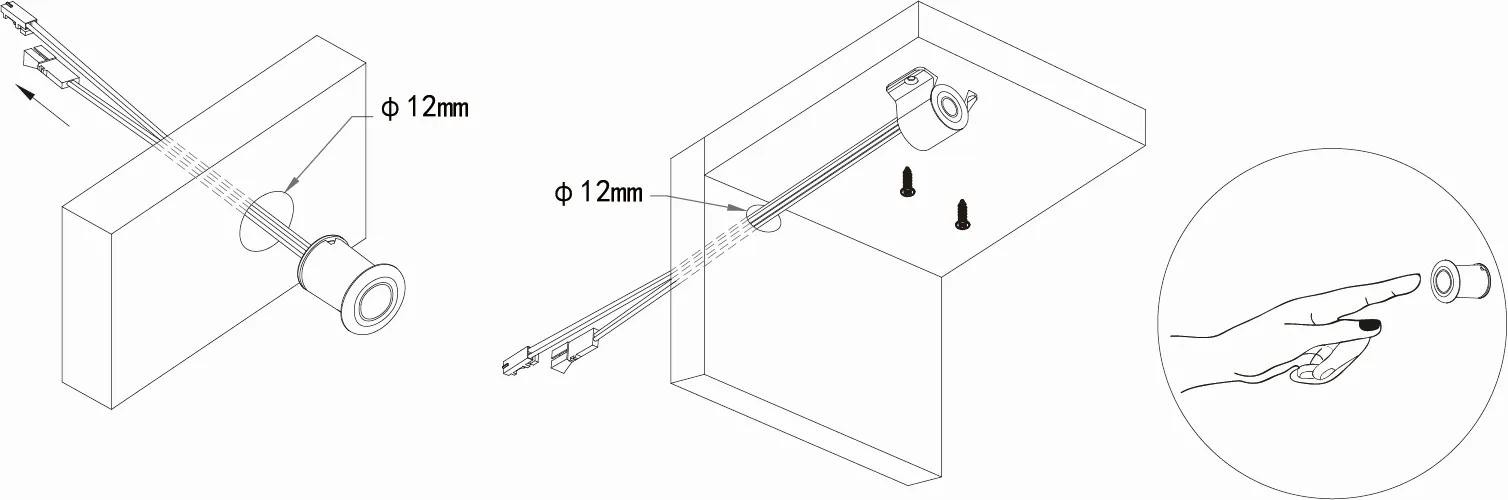

Installation

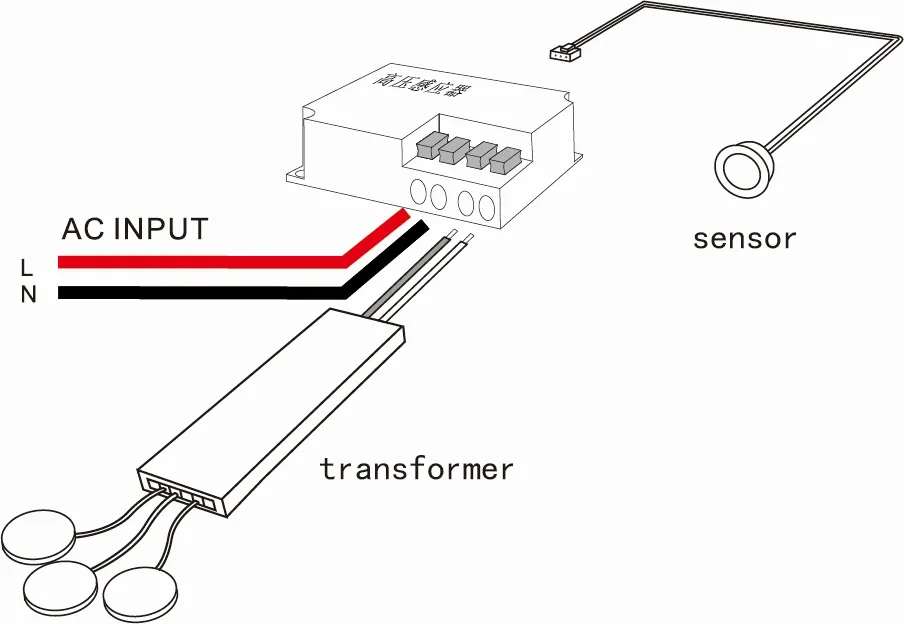

Wiring diagram

Notes on use
①To avoid damage to switch, connect according to instruction;
②Don't put it in the child's reachable range as they may swallow some smaller parts by mistake;
③The product is only used in dry indoor environment. Strong wind, strong heat, strong shaking and other environments may cause sensor failure.
