2.4G Wireless Knob Dimmer

This wireless knob dimmer adopts 2.4GHz wireless RF control mode and must be paired with our receiver to enable wireless control of lighting fixtures. This dimmer has three functions. Short-press to turn the light on or off. Rotate clockwise to increase brightness, or counterclockwise to decrease it. Long-press to adjust the color temperature, but only when used with the dual-color temperature receiver and dual-color LED lights.

1. Power on

The switch is switched off by default. To switch it on, press the A button(remove the bottom base cover of the switch), the indicator light will illuminate and flash. Press and hold the button for 3 seconds to switch it off.

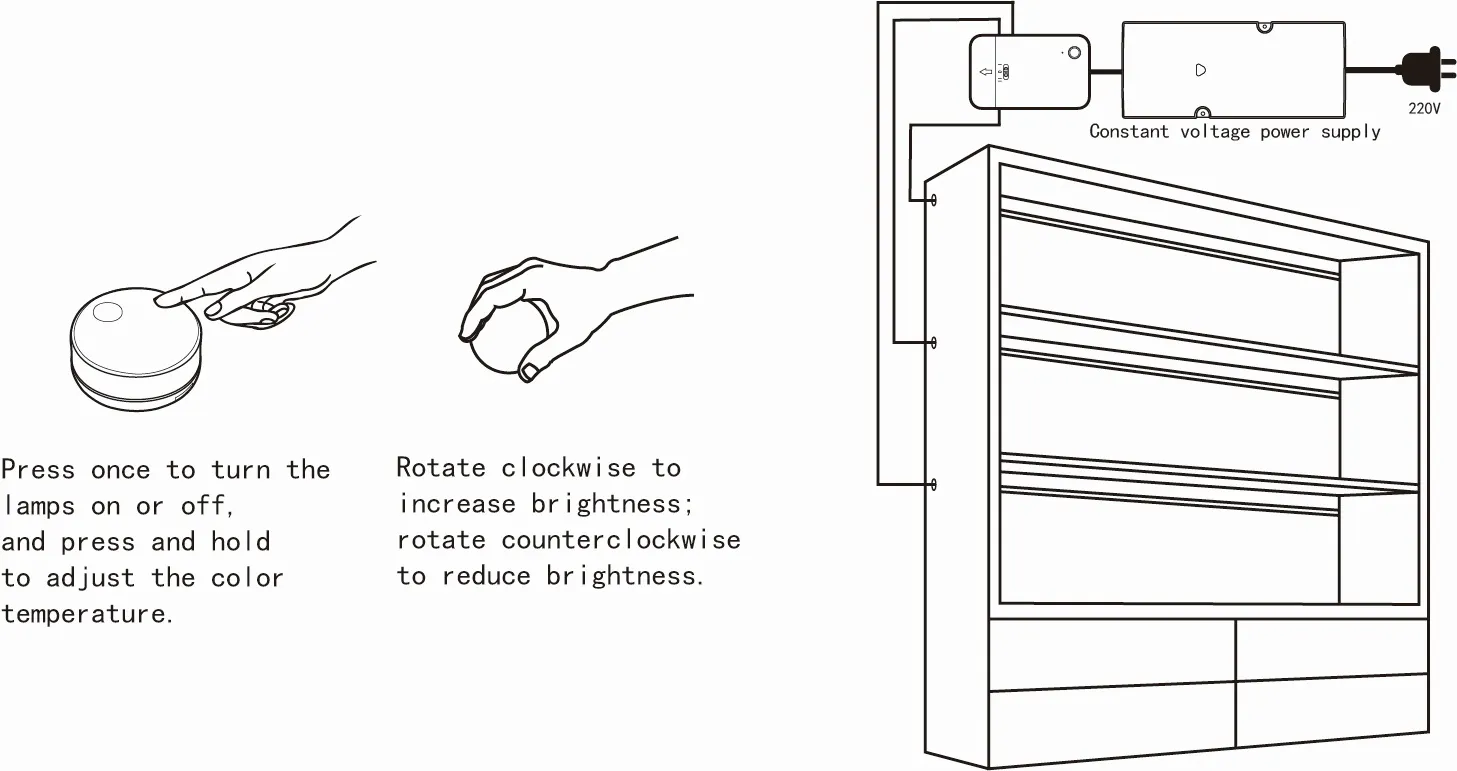

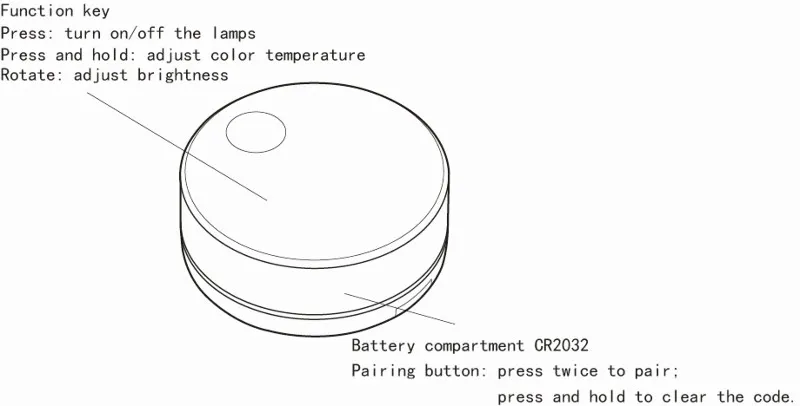

2. Function

Press: turn on/off the lamps

Press and hold: adjust the color temperature

Rotate: adjust brightness-rotate clockwise to increase brightness; rotate counterclockwise to decrease brightness

3. Battery compartment

Battery: 200mah CR2032(remove the bottom base cover of the switch)

Pairing button A: press twice to pair; press and hold to clear the code

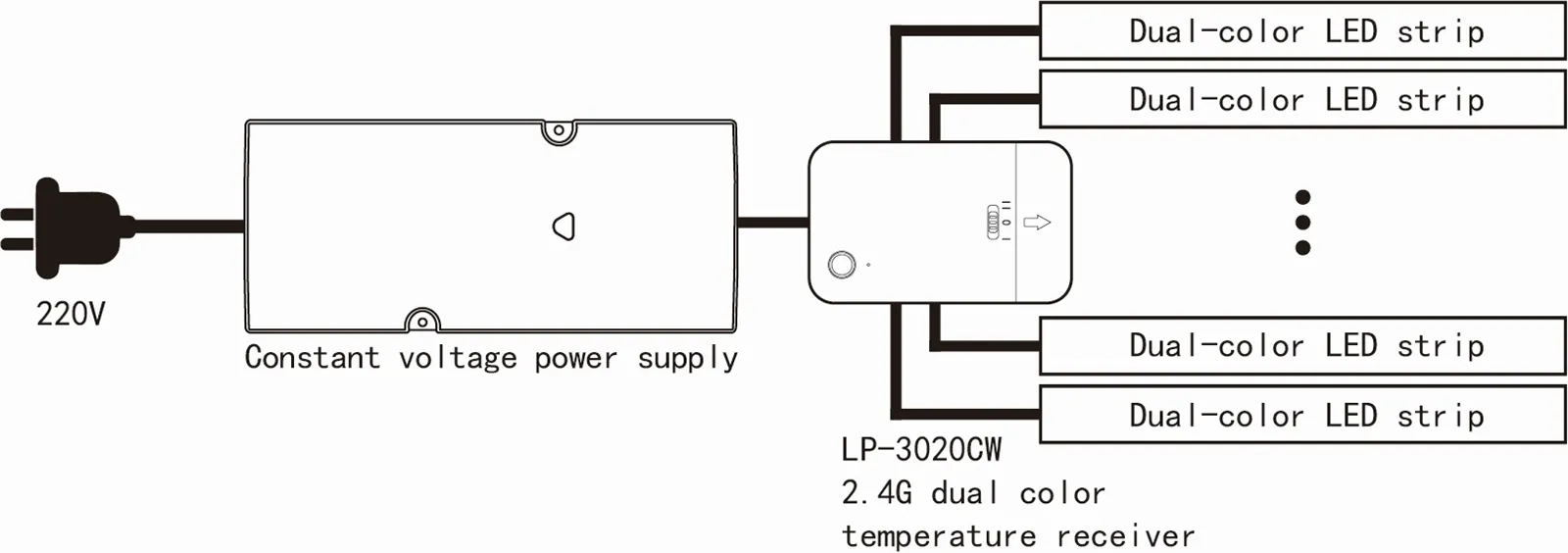

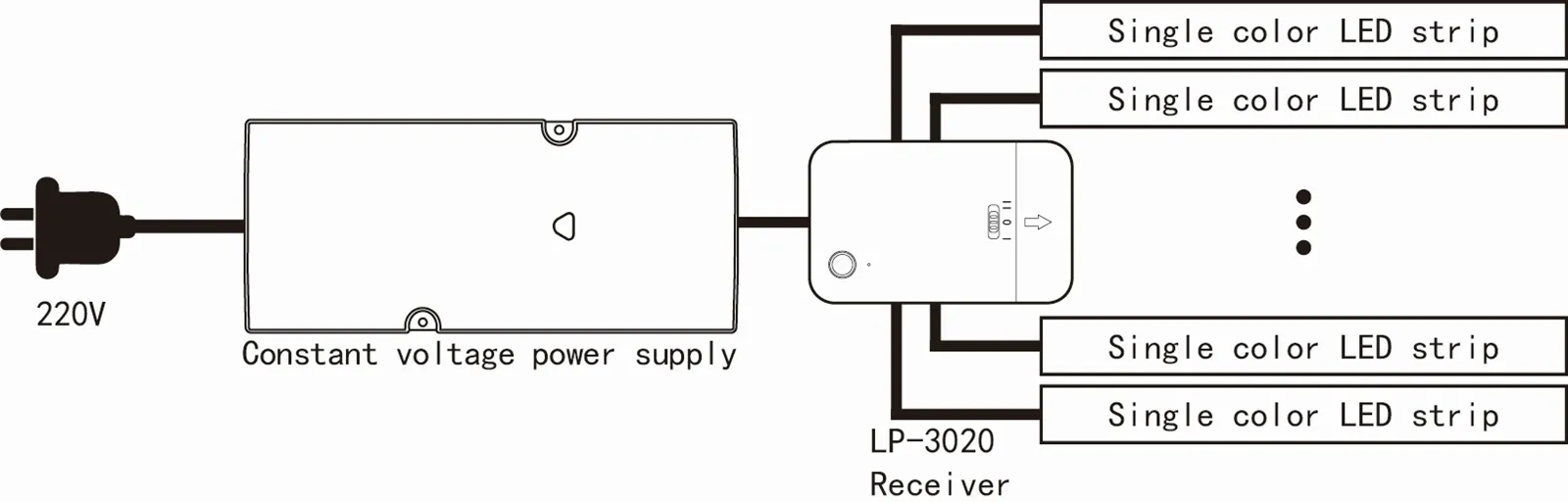

This product must be paired with the receiver before it can be used. Please select the receiver (sold separately) that meets your project requirements.
