433MHz Dual Color Temperature Receiver

This double color temperature wireless receiver is part of our 433MHz wireless sensor switch series. This series of items includes wireless sensor switches with different functions, wireless remote control and wireless receivers. The sensor switches and remote control communicate wirelessly with the receiver via the 433 MHz frequency to control the LED lamps that connected to the paired receiver. This double color temperature wireless receiver (LP-2926C) is designed for use with our products that have color temperature adjustment function and dual color LED lights. You can adjust the color temperature of the light strips to suit different environments and requirements.

Steps:

1. Connect the lamps to the receiver;
2. Connect the receiver input to a 12V/24V DC constant voltage power supply;
3. Switch the power on then the lamps connected to the receiver will light up for 5s;

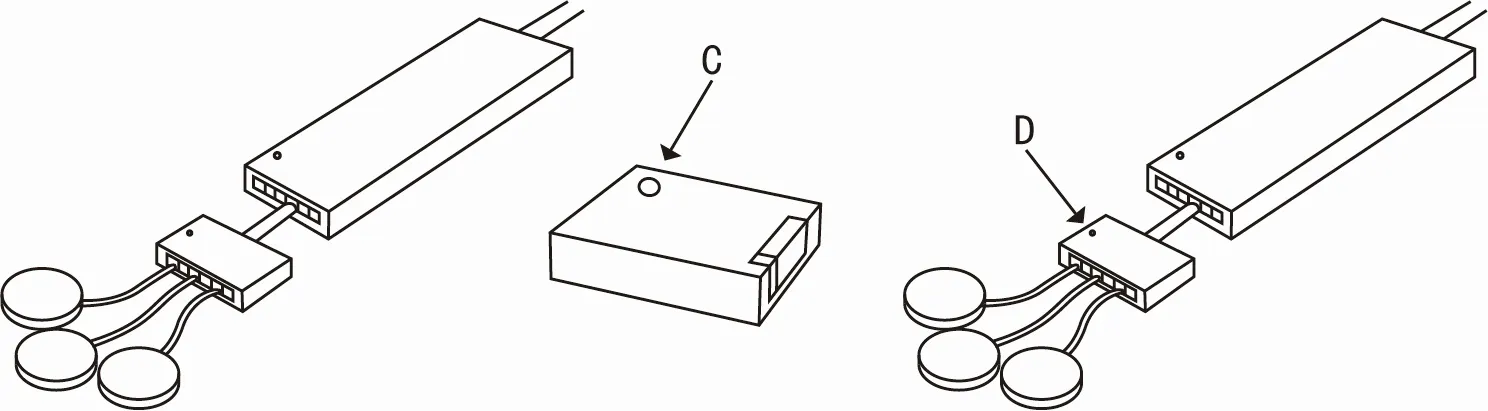

4. Press pairing button C on the sensor switch within 5s,then the lamps will flash 3 times to indicate that pairing is complete;
5. If the pairing fails within 5s, the lamps will go out automatically. Switch off the power then switch it on again,repeat step 4 once;

Note: Short press on D button to manually pair;long press on D button for 8s,the receiver will enter active pairing state.

Press and hold the D button for 15 seconds to reset. The lamps will flash rapidly and then turn off, the paired device data will be erased.

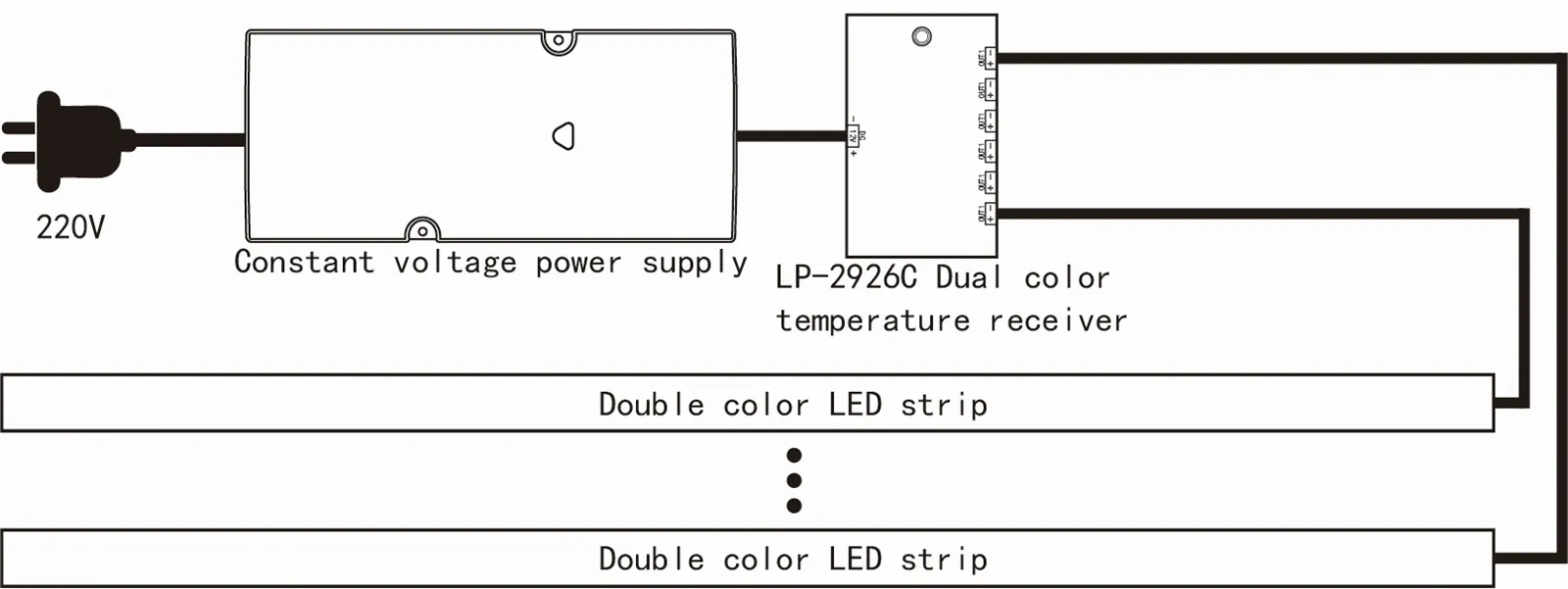

Connect the dual color LED lamps to the receiver. The receiver has six ports for connecting LED lamps.

Connect the receiver input to a 12V/24V DC constant voltage power supply.
